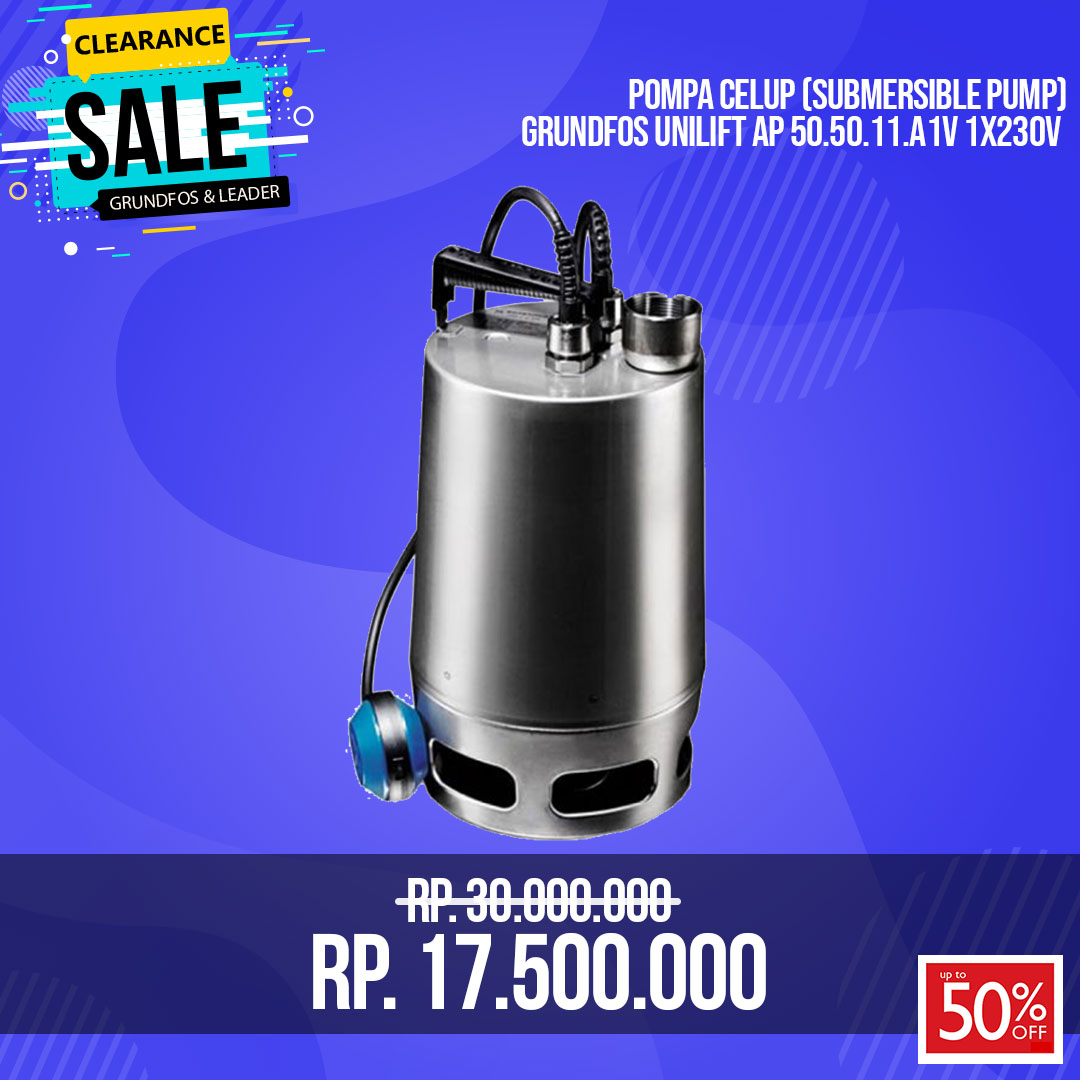

Mesin Pompa Celup Stainless Grundfos UNILIFT AP 50.50.11.A1V 1X230V

Rp30,000,000.00 Rp17,500,000.00

-42%
Avaiability: In Stock

Technical :
– Max flow: 8.33 l/s
– Head max: 12 m
– Type of impeller: VORTEX
– Maximum particle size: 50 mm

Materials :
– Pump housing: Stainless steel
– Pump housing: DIN W.-Nr. 1.4301
– Pump housing: AISI 304
– Impeller: Stainless steel
– Impeller: DIN W.-Nr. 1.4301
– Impeller: AISI 304

Installation :
– Pump outlet: Rp 2
– Maximum installation depth: 7 m
– Inst dry/wet: D/S
– Installation: horizontal or vertical

Liquid :
– Liquid temperature range: 0 .. 55 °C
– Density: 998.2 kg/m³

Electrical data :
– Type of motor: PSC
– C run: 20 µF
– Power input – P1: 1.6 kW
– P2: 1.1 kW
– Mains frequency: 50 Hz
– Rated voltage: 1 x 230 V
– Rated current: 8 A
– Cos phi – power factor: 0,92
– Rated speed: 2800 rpm
– Capacitor size – run: 20 µF/400 V
– Enclosure class (IEC 34-5):: IP68
– Insulation class (IEC 85): F
– Motor protec: CONTACT
– Thermal protec: internal
– Length of cable: 10 m
– Type of cable plug: NONE

Controls :
– Level switch: float switch

Weight 30000 g
