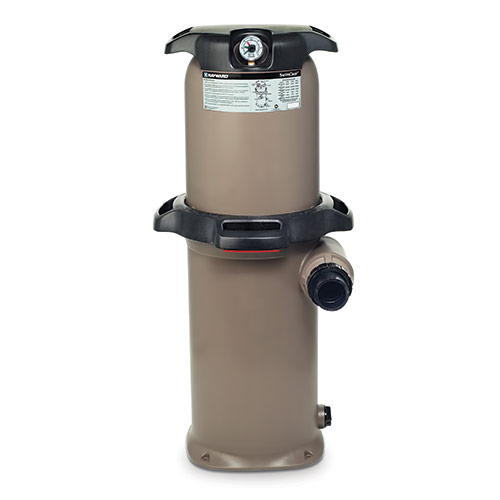

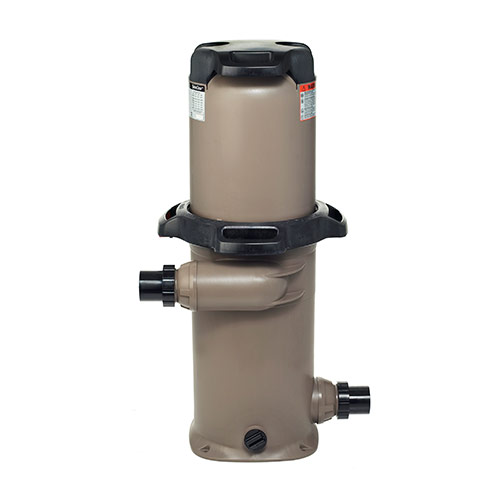

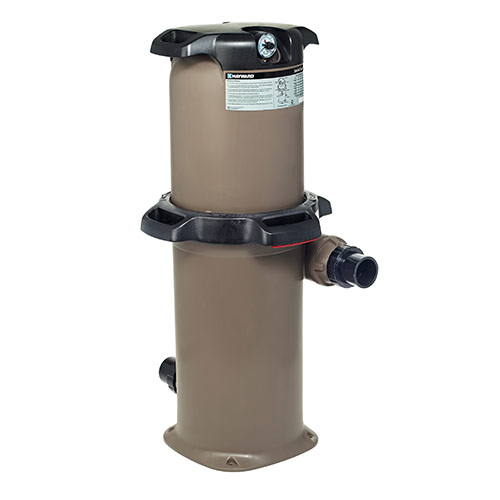

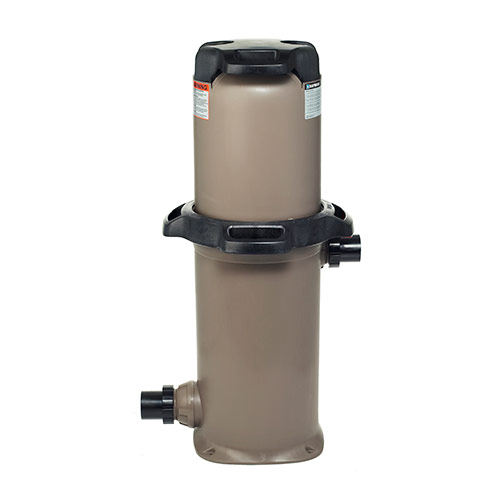

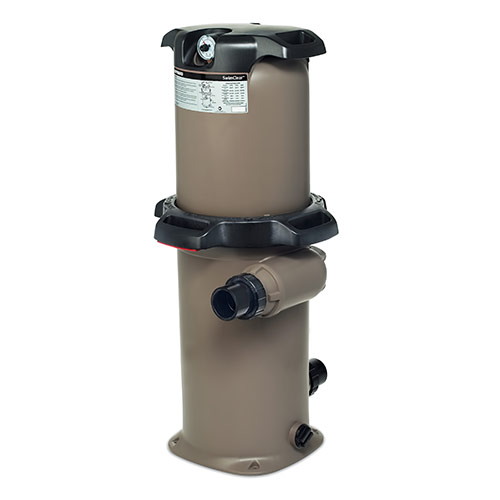

SwimClear single element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or backwashing, while the industry’s lowest head loss reduces energy costs. SwimClear is also the easiest to service: the Easy-Lok™ ring design, comfort grip handles, and lowest lift height provide fast cleaning and element replacement. SwimClear is an excellent filtration solution for smaller and mid-size pools, spas and water features.
- Industry-leading hydraulic efficiency allows the pump to run at a lower speed or for less time, increasing energy savings
- Easy-Lok ring design allows quick access to internal components for quick and simple maintenance
- Recessed pressure gauge and manual air relief enables user to place head assembly upside down on pool pad, protecting the seal from contamination
- 2” x 2 1/2” union connections make installation and servicing fast and easy
Technical Specifications
| Model | Effective Filtration Area | Union Connections | Dimen. Width | Dimen. Height |
|---|---|---|---|---|
| C100S | 100 ft. sq. | 2” x 2.5” | 18 1/4” | 30 1/2” |
| C150S | 150 ft. sq. | 2” x 2.5” | 18 1/4” | 33 1/2” |
| C200S | 200 ft. sq. | 2” x 2.5” | 18 1/4” | 38 1/2” |
| Model | Turnover 8 Hrs (Gal) | Design Flow Rate | Turnover 10 Hrs (Gal) |
|---|---|---|---|
| C100S | 48,000 | 100 GPM | 60,000 |
| C150S | 57,600 | 120 GPM | 72,000 |
| C200S | 57,600 | 120 GPM | 72,000 |
Performance Data – Public
| Model | Design Flow Rate | Turnover 8 Hrs (Gal) | Turnover 10 Hrs (Gal) |
|---|---|---|---|
| C100S | 38 GPM | 18,240 | 22,800 |
| C150S | 56 GPM | 26,880 | 33,600 |
| C200S | 75 GPM | 36,000 | 45,000 |
Applications
- In-ground pools
- In-ground pool/spa combinations
