Mesin Pompa Kolam Renang Swimming Pool Pump Hayward MaxFlo VS™

Avaiability: In Stock

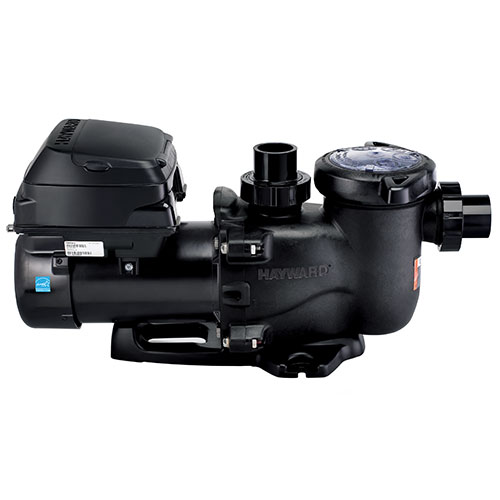

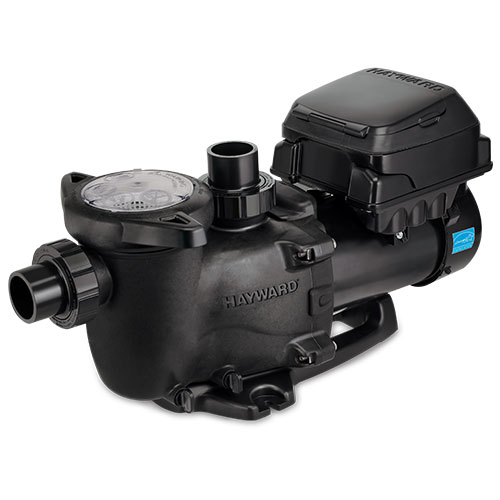

MaxFlo VS™ brings variable-speed technology to the popular MaxFlo pump family. They are a drop-in variable-speed pool pump upgrade that delivers up to 80% energy cost savings over single speed models. Designed for small to medium pools, MaxFlo VS pays for itself faster than larger, more expensive models.

Features:

  • Permanent magnet, totally enclosed fan cooled (TEFC) motor delivers maximum energy efficiency and reliability
  • Exceptionally quiet compared to single speed pumps
  • Fully programmable, touch pad control can be rotated to four different positions or mounted to the wall for more convenient access
  • Universal compatibility: operates independently, with Hayward automation*, or with competitive systems (via relay control)
  • Available in both 115V and 230V versions

*230V version only (SP2303VSP)

Technical Specifications

Model Speed Range Voltage Union Connections
SP2303VSP 600 – 3450 RPM 230V Single Phase 1.5″ x 2″
SP23115VSP 600 – 3450 RPM 115V Single Phase 1.5″ x 2″
SP23520VSP 600 – 3450 RPM 230V Single Phase 1.5″ x 2″
SP23510VSP 600 – 3450 RPM 115V Single Phase 1.5″ x 2″
Performance Data – RPM 1725 – Pump Output (GPM) vs. Total Resistance to Flow (Feet of Head)
Model Percent Output 10ft 20ft 30ft 40ft 50ft
SP2303VSP 50% 30
SP23115VSP 50% 30
SP23520VSP 50% 30
SP23510VSP 50% 30
Performance Data – RPM 2400 – Pump Output (GPM) vs. Total Resistance to Flow (Feet of Head)
Model Percent Output 10ft 20ft 30ft 40ft 50ft
SP2303VSP 70% 59 40
SP23115VSP 70% 59 38
SP23520VSP 70% 59 40
SP23510VSP 70% 59 38
Performance Data – RPM 3000 – Pump Output (GPM) vs. Total Resistance to Flow (Feet of Head)
Model Percent Output 10ft 20ft 30ft 40ft 50ft
SP2303VSP 87% 80 68 52 27
SP23115VSP 87% 80 66 50 24
SP23520VSP 87% 80 68 52 27
SP23510VSP 87% 80 66 50 24
Performance Data – RPM 3450 – Pump Output (GPM) vs. Total Resistance to Flow (Feet of Head)
Model Percent Output 10ft 20ft 30ft 40ft 50ft
SP2303VSP 100% 96 85 73 59 40
SP23115VSP 100% 96 84 72 58 36
SP23520VSP 100% 96 85 73 59 40
SP23510VSP 100% 96 84 72 58 36

Overall Dimensions (inches)

content/specifications/MaxFloVSDiamentionalDrawing.jpg

Applications

  • In-ground pools of all types and sizes
  • In-ground spas
